Visual Localization and Navigation Using AprilTags

This project implements a vision-based localization and navigation system for a mobile robot using AprilTags as known references.
The robot continuously detects visual markers, estimates its global pose from the camera, and autonomously navigates towards them while avoiding frontal obstacles.

The system combines camera geometry, pose estimation, reactive control, and landmark-based localization, without relying on odometry or mapping.

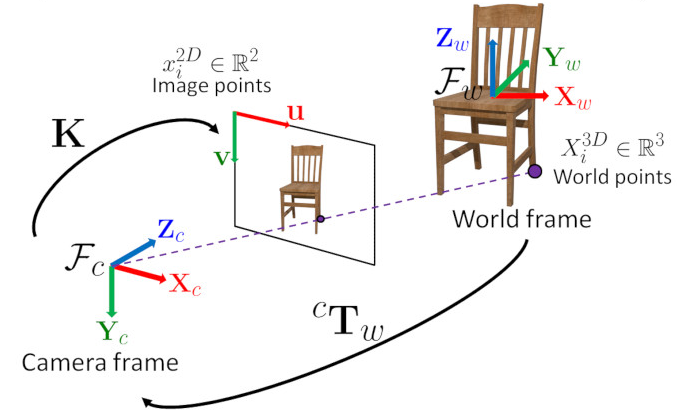

Visual Marker Example

General Strategy

The robot follows a main loop that integrates:

  • AprilTag detection using the onboard camera
  • Absolute pose estimation using known tag positions
  • Reactive obstacle avoidance using laser data
  • Navigation directed toward detected tags
  • Memory of visited landmarks

If no valid visual references are available, the robot performs a controlled rotation to recover localization.

AprilTag Map

Tag positions are defined a priori in a YAML file, each with:

  • (x, y, z) position
  • yaw orientation

These data are transformed into 4x4 homogeneous matrices, allowing direct transformations between the tag frame, the camera, and the world, establishing a global reference system.

Camera Model and Tag Geometry

The camera is modeled as a pinhole projection:

  • Square focal length proportional to the image width
  • Principal point at the center
  • No lens distortion

Each tag is defined as a square with known dimensions and its four local 3D points are stored, allowing pose estimation from a single image.

Visual Pose Estimation

For each detected tag:

  1. Extract the corners from the image
  2. Apply solvePnP to obtain the camera→tag transformation
  3. Invert it to get tag→camera
  4. Select the nearest tag to reduce noise
  5. Compute the chain of transformations to the world

From this, we obtain:

  • Global pose (x, y)
  • yaw orientation of the camera’s forward axis

This provides an absolute pose estimate, independent of prior state.

Reference Frame Alignment

Fixed rotations are applied to align:

  • Camera forward direction
  • Horizontal world plane
  • Extracted yaw angle

This ensures a consistent geometric interpretation of position and orientation.

Reactive Obstacle Avoidance

The frontal sector is continuously monitored with the laser:

  • If a nearby obstacle is detected
  • And no tags are visible

The robot stops linear motion and rotates in place. The rotation direction depends on the obstacle location, enabling safe exploration while searching for visual references.

Landmark Selection

To avoid oscillations:

  • Detected tags are filtered using a memory of visited ones
  • Unvisited tags are prioritized
  • When approaching a tag, it is marked as visited
  • After each visit, the rotation direction can be reversed to improve coverage

Motion Control

A proportional controller is used toward the selected tag:

  • Linear velocity proportional to distance
  • Angular velocity proportional to orientation error
  • Commands are saturated to ensure smooth motion

If no valid pose estimate exists, the robot adopts cautious movement or a recovery rotation.

Pose Propagation

When no visual update is available, the estimated pose is propagated using differential kinematics.
Angular velocity is scaled to compensate for actuator mismatches, improving temporal consistency.

Videos

Non-Inverter

Inverter

Conclusion

This project demonstrates a complete landmark-based visual localization system:

  • Absolute pose estimation from tags
  • Robust recovery from reference loss
  • Reactive obstacle avoidance
  • Simple and effective navigation
  • Lightweight, modular, and suitable for indoor environments with visual markers
